Bahri containers specifications

20' Standard

  • Inside Cubic Capacity  1,168 cu.ft.
  • Cargo Capacity  47,795 lbs.
  • Tare Weight  5,115 lbs.
  • Outside  Inside
  • Length 19'-10 1/2"  19'- 4 3/16"
  • Width 8' - 0"  7' - 9 31/32"
  • Height 8' - 6"  7' - 5 49/64"
  • Door Size:
  • Height  7' - 5 49/64"
  • Width  7' - 8 3/64"

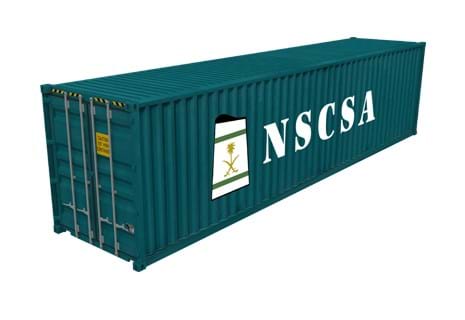

40' Standard

  • Inside Cubic Capacity  2,383 cu. ft.
  • Cargo Capacity  58,560 lbs.
  • Tare Weight  8,640 lbs.
  • Outside:  Inside:
  • Length 40'- 0"  39’ - 5 48/64"
  • Width 8' - 0"  7' - 8 33/64"
  • Height 8' - 6"  7' - 9 31/32"
  • Door Size:
  • Height  7' - 5 49/64"
  • Width  7' - 8 3/64"

20' Opentop

  • Inside Cubic Capacity  1,137 cu. ft.
  • Cargo Capacity  47,710 lbs.
  • Tare Weight  5,200 lbs.
  • Outside:  Inside:
  • Length 19'-10 1/2"  19'- 4 13/32"
  • Width 8' - 0"  7' - 8 33/64"
  • Height 8' - 6"  7' - 7 47/64"
  • Door Size:
  • Height  7' - 3 61/64"
  • Width  7' - 8 3/64"

40' Opentop

  • Inside Cubic Capacity  2,325 cu.ft.
  • Cargo Capacity  58,050 lbs.
  • Tare Weight  9,150 lbs.
  • Outside:  Inside:
  • Length 40'-0"  39’- 5 57/64"
  • Width 8' - 0"  7' - 8 33/64"
  • Height 8' - 6"  7' - 7 47/64"
  • Door Size:
  • Height  7' - 3 61/64"
  • Width  7' - 8 3/64"

20' Collapsible Flatrack

  • Inside Cubic Capacity
  • Cargo Capacity  61,290 lbs.
  • Tare Weight  4,850 lbs.
  • Outside:  Inside:
  • Length 19'- 10 1/2"  19'- 8"
  • Width 8' - 0"  7' - 3"
  • Height 8' - 6"  7' - 5"

40' Collapsible Flatrack

  • Inside Cubic Capacity
  • Cargo Capacity  89,507 lbs.
  • Tare Weight  9,700 lbs.
  • Outside:  Inside:
  • Length 40'- 0"  39'- 7 1/2"
  • Width 8' - 0"  7' - 6 1/2"
  • Height 8' - 6"  6’ - 5"

40' and 20' Chassis

  • 20' Chassis
  • Tare Weight  6,500 lbs.
  • 40' Chassis
  • Tare Weight  6,750 lbs.

40' High Cube

  • Inside Cubic Capacity  2,690 cu. ft.
  • Cargo Capacity  58,657 lbs.
  • Tare Weight  8,543 lbs.
  • Outside:  Inside:
  • Length 40'- 0"  39’- 5 3/4"
  • Width 8' - 0"  7' - 8 3/16"
  • Height 9' - 6"  8' - 9 27/32"
  • Door Size:
  • Height  8' - 5 41/64"
  • Width  7' - 8 3/64"

40' MAFI (3 types)

  • 60 MT Capacity
  • Tare Weight  16,680 lbs.
  • 80 MT Capacity
  • Tare Weight  17,920 lbs.
  • 100 MT Capacity
  • Tare Weight  17,636 lbs.

20' MAFI

  • 20 MT Capacity
  • Tare Weight  7,500 lbs.

62' MAFI

  • 80 MT Capacity
  • Tare Weight   29,100 lbs.

General specification of Bahri containers

keyboard_arrow_down
Size Type Length MM Width MM Height MM CAPCITY CBM
FT FT FT CBF
20' ST 5,898 2,352 2,393 33.2
20' ST 19'- 4 1/4" 7'- 8 1/2" 7'-10 1/4" 1171
20' OT 5,898 2,352 2,330 32.2
20' OT 19'- 4 1/4" 7'- 8 1/2" 7'-7 3/4" 1137
40' ST 12,032 2,352 2,393 67.7
40' ST 39'-5 3/4" 7'- 8 1/2" 7'-10 1/4" 2390
40' HC 12,032 2,352 2,698 76.3
40' HC 39'-5 3/4" 7'- 8 1/2" 8'-10 1/4" 2694
40' OT 12,032 2,352 2,330 65.8
40' OT 39'-5 3/4" 7'- 8 1/2" 7'-7 3/4" 2325
Size Type Length MM Width MM Height MM CAPCITY CBM
FT FT FT CBF
20' ST 6,058 2,438 2,591 33.2
20' ST 19'-10 1/2" 8'-0" 8'-6" 1171
20' OT 6,058 2,438 2,591 32.2
20' OT 19'-10 1/2" 8'-0" 8'-6" 1137
40' ST 12,192 2,438 2,591 67.7
40' ST 40'-0" 8'-0" 8'-6" 2390
40' HC 12,192 2,438 2,896 76.3
40' HC 40'-0" 8'-0" 9'-6" 2694
40' OT 12,192 2,438 2,591 65.8
40' OT 40'-0" 8'-0" 8'-6" 2325
Size Type Width MM Height MM CAPCITY CBM
FT FT CBF
20' ST 2,340 2,280 33.2
20' ST 7'-8" 7'-5 3/4" 1171
20' OT 2,340 2,234 32.2
20' OT 7'-8" 7'–3" 1137
40' ST 2,340 2,280 67.7
40' ST 7'-8" 7'-5 3/4" 2390
40' HC 2,340 2,585 76.3
40' HC 7'-8" 8'-5 3/4" 2694
40' OT 2,340 2,234 65.8
40' OT 7'-8" 7'–3" 2325
Size Type Length MM Width MM Height MM CAPCITY CBM
FT FT FT CBF
20' ST 30,480 2,280 28,200 33.2
20' ST 67200 5030 62170 1171
20' OT 24,000 2,360 21,640 32.2
20' OT 52910 5200 47710 1137
40' ST 30,480 3,740 26,740 67.7
40' ST 67200 8250 58950 2390
40' HC 30,480 3,910 26,570 76.3
40' HC 67200 8620 58580 2694
40' OT 30,480 4,150 26,330 65.8
40' OT 67200 9150 58050 2325

Mafi

Length Payload Platform Height Ground Clearance Wheel Dimensions
20' 30 Tons / 30,000 KG 690mm 250mm 18 x 10 x 16 inches
40' 60 Tons / 60,000 KG 780mm 250mm 22 x 12 x 16 inches
40' 80 Tons / 80,000 KG 800mm 280mm 22 x 14 x 16 inches
40' 100 Tons / 100,000 KG 750mm 290mm 22 x 16 x 16 inches
62' 80 Tons / 80,000 KG 850mm 284mm 22 x 14 x 16 inches
